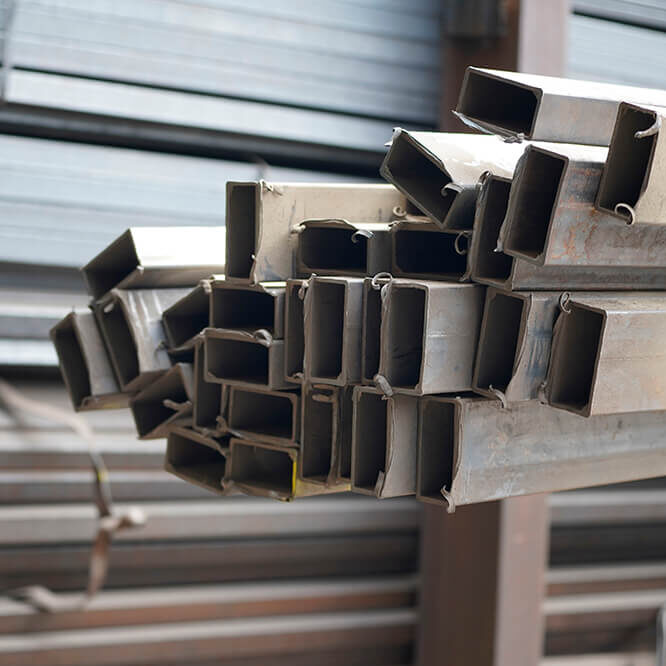

Profile

Profiles are steel and hollow sections that are produced in two categories, open and closed, and have different types. Among these categories, we can mention the shape, dimensions, material, thickness, uses, production method, etc. Profiles are produced in various types and their application is also wide. Open sections of steel profiles are mainly used in industries, and closed sections are mostly used in building construction. Also, profiles are used in other industries such as shipbuilding, automotive, furniture industry, etc

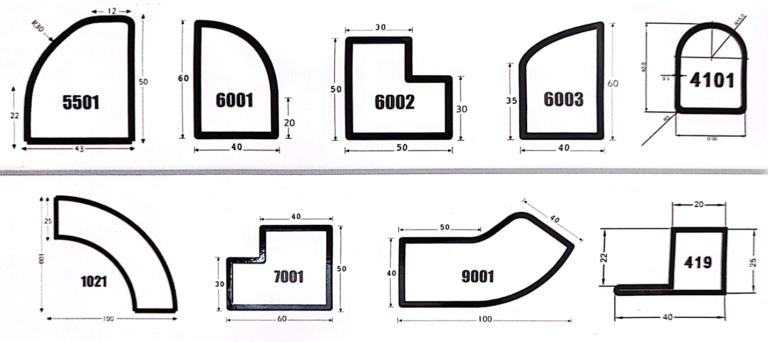

Industrial profiles

Thickness (mm)

1.25	1.5	1.6	1.75	1.8	2	2.3	2.5	2.6	2.9	3	3.2	3.5	3.6	3.7	3.8	4	Dimension(mm.)
	2.24	2.385	2.602	2.674	2.961	3.387	3.669	3.809	4.226	4.364	4.639	5.047	5.182	5.317	5.451	5.717	6001
	2.317	2.467	2.692	2.767	2.063	3.507	3.798	3.943	4.377	4.52	4.807	5.23	5.372	5.512	5.65	5.928	6002
	2.24	2.385	2.602	2.674	2.961	3.387	3.669	3.809	4.226	4.364	4.639	5.047	5.182	5.317	5.451	5.717	6003
	2.622	2.792	3.048	3.133	3.472	3.975	4.307	4.4737	4.967	5.13	5.455	5.94	6.102	6.262	6.42	6.738	7001
	3.347	3.565	3.893	4.002	4.437	5.083	5.513	5.727	6.365	6.577	7	7.628	7.838	8.047	8.253	8.668	9001
	1.998	2.128	2.322	2.385	2.64	3.018	3.269	3.393	3.763	3.885	4.128	4.492	4.608	4.728	4.845	5	5501
	3.755	4.002	4.37	4.492	4.982	5.712	6.195	6.437	7.158	7.397	7.875	8.587	8.823	9.058	9.923	5.082	1021
	3.755	3.755	3.755	3.755	3.755	3.755	3.755	3.755	3.755	3.755	3.755	3.755	3.755	3.755	3.755	3.755	1022
	3.755	3.755	3.755	3.755	3.755	3.755	3.755	3.755	3.755	3.755	3.755	3.755	3.755	3.755	3.755	3.755	1023
1.21	1.44																4101
	1.06			1.99													419

Please get in touch with our experts to ask about pricing and availability

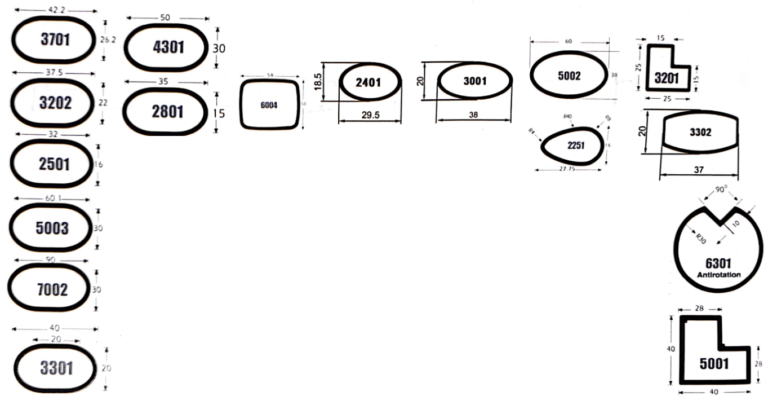

All kinds of industrial shaped profiles

weight(kg/m.)

Thickness(mm)

3	2.5	2	1.5	1	0.9	0.8	0.7	Dimension
	1.245	1.022	0.783	0.535	0.52	0.46	0.41	2251
				0.57				2401
	1.4	1.145	0.877	0.597				2501
	1.588	1.295	0.99	0.672				2801
2.2	1.83	1.536	1.158	0.78				3001
2.2	1.83	1.536	1.158	0.78				3201
2.375	1.989	1.599	1.205	0.807				3202
				0.72			0.51	3301
2.242	1.898	1.545	1.177	0.797				3302
2.667	2.253	1.793	1.325	0.897				3701
2.96	2.5	2.03	1.54	1.04				4301
3.674	3.08	2.48	1.866	1.248				5001
3.603	3.033	2.425	1.825	1.221				5002
3.51	2.95	2.39	1.811	1.22				5003
4.352	3.636	2.917	2.199	1.474				6004
4.48	3.871	3.12	2.352					6301
5.01	4.2	3.38	2.55					7002

Please get in touch with our experts to ask about pricing and availability

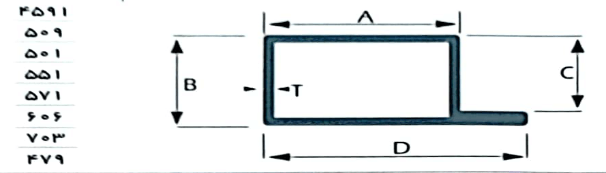

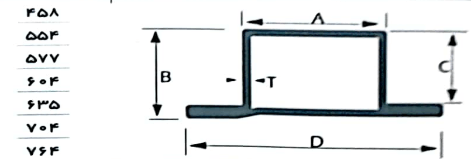

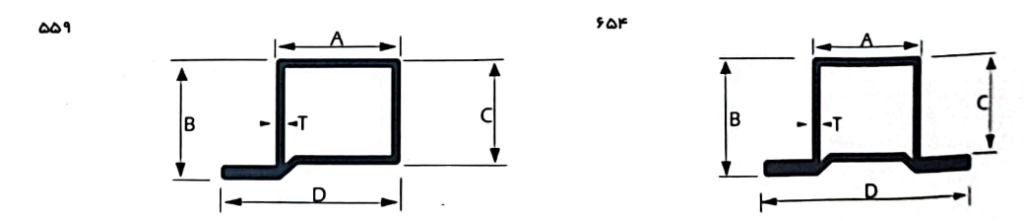

Window profiles

T=2mm	T=1.8mm	T=1.5mm	T=1.25mm	T=1mm	T=0.9mm	T=0.8mm	D	C	B	A	Profill No.	group
	1.973	1.655		1.12	1.01		40	25.5	29	30	4591	1
	1.973	1.655		1.12	1.01		42	25.5	29	22	456
	1.973	1.655		1.12	1.01		32	25.5	29	32	457
	1.973	1.655					40	25.5	33.5	20	458
	1.973	1.655					30	25.5	33.5	30	459
	0.84	0.66						6	10	22	191
	0.84	0.66						6	10	21	94
2.45	2.22	1.856	1.556	1.25	1.14		51	25	29	38	509	2
2.45	2.22	1.856	1.556	1.25	1.14		51	25	29	25	507
2.45	2.22	1.856	1.556	1.25	1.14		38	25	29	38	508
2.655	2.398						55	25	33	28	554
2.655	2.398						42	25	33	42	555
1	0.91							7	11	25	222
0.937	0.842							7	11	25	95
2.45	2.215						46	30	34	31	501	3
2.655	2.398						53	30	34	23	552
2.808	2.537						41	30	34	41	576
2.808	2.537						53	30	38	23	577
2.808	2.537						38	30	38	38	579
1.159	1.04							8	15	27	252
1.123	1.025							11	15	28	87
2.655	2.398						52	30	34	46	551	4
2.977	2.688						61	30	34	44	602
2.977	2.688						46	30	34	59	601
2.977	2.688						59	30	38	42	604
2.977	2.688						44	30	38	57	603
1.15	1.04							8	15	27	252
1.123	1.025							11	15	28	87
2.808							55	30	34	40	571	5
3.14							66	30	34	36	638
3.14							51	30	34	51	633
3.14							63	30	38	33	635
3.14							48	30	38	48	631
1.15								8	15	27	252
1.123								11	15	28	87
2.977							61	30	34	46	606	6
3.39							74	30	34	44	702
3.39							59	30	34	59	701
3.39							72	30	38	42	704
3.39							57	30	38	57	706
1.15								8	15	27	252
1.123								11	15	28	87
3.472							74	30	34	59	703	7
3.777							85	30	34	55	762
3.777							70	30	34	70	761
3.777							83	30	38	53	764
3.777							68	30	38	68	766
1.15								8	15	27	252
1.123								11	15	28	87
2.655							50	34	38	35	550	8
2.977							59	30	34	29	604
2.977							44	30	34	44	603
3.1							63	30	34	33	635
3.1							63	34	38	33	654
1.15								8	15	27	252
1.123								11	15	28	87
2.29	2.07	1.74	1.46	1.17	1.06	0.94	48	24	26	22	447	For export
2.29	2.07	1.74	1.46	1.17	1.06	0.94	35	24	26	35	478
2.29	2.07	1.74	1.46	1.17	1.06	0.94	48	24	26	35	479

Please get in touch with our experts to ask about pricing and availability

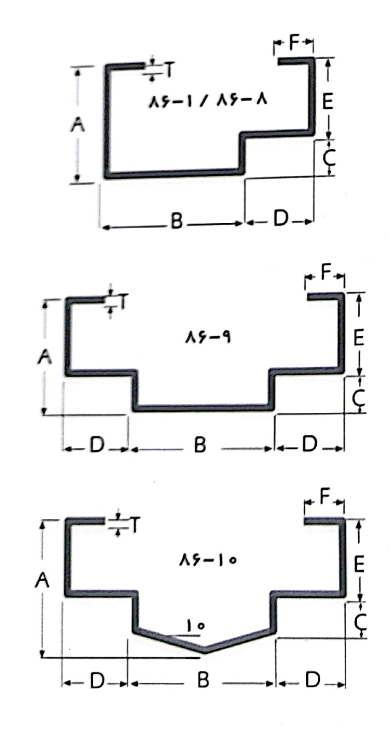

Door frame

T=2mm	T=1.8mm	F	E	D	C	B	A	Profile No.
3.572	3.215	15	32	35	18	85	50	86-1
3.667	3.299	15	32	25	18	105	50	86-2
3.772	3.406	15	32	48	18	82	50	86-3
3.128	2.827	20	37	45	10	40	47	86-4
3.411	3.081	20	37	45	10	40	65	86-5
3.066	2.77	15	20	40	20	65	40	86-6
4.243	3.818	15	32	35	18	125	50	86-7
3.822	3.44	15	32	35	18	105	50	86-8
4.103	3.692	15	32	35	18	90	50	86-9
4.479	3.13	15	32	35	18	90	57.5	86-10
3.572	3.215	15	30	35	15	70	45	86-11
3.7	3.3	15	25	40	18	40	40	86-12

Please get in touch with our experts to ask about pricing and availability

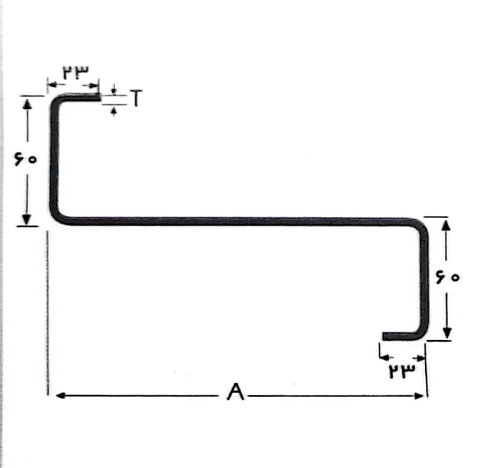

Z profile

Weight(kg/m)	T(mm)	A(mm)	Profile No0
4.852	2	160	z-16
6.025	2.5	160
7.208	3	160
5.18	2	180	z-18
6.454	2.5	180
7.722	3	180
5.475	2	200	z-20
6.805	2.5	200
8.143	3	200
9.473	3.5	200
5.788	2	220	z-22
7.195	2.5	220
8.612	3	220
10.019	3.5	220
